Server Configuration

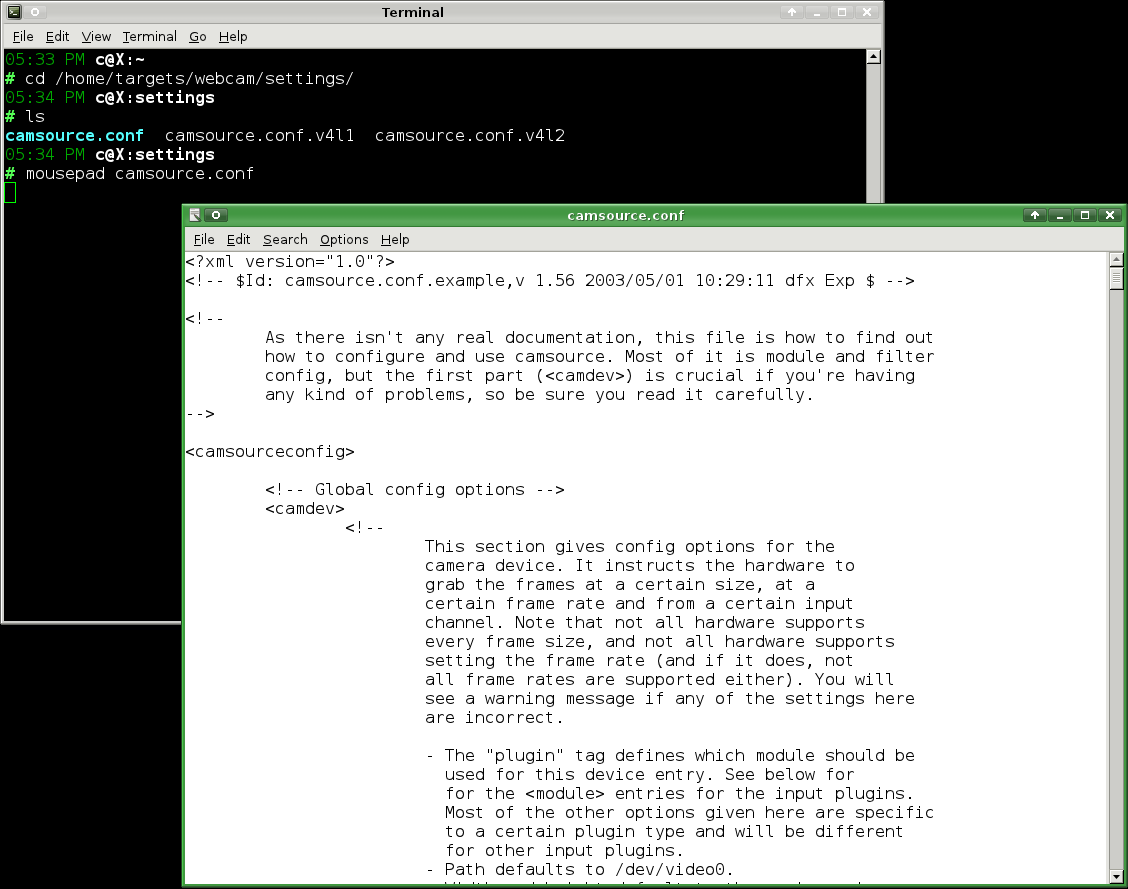

Configuring Camsource Server

Configuration Path: /home/targets/webcam/settings/

The Files:

1. camsource.conf
2. camsource.conf.v4l1
3. camsource.conf.v4l2

File 1:
  This is the file processed by the camsource server, changes to this file will effect the server on restart.

File 2:
  This is an example camsource.conf using a Video4Linux 1 Device.

File 3:
  This is an example camsource.conf using a Video4Linux 2 Device.

Notes:

• The configuration file is an XML file, XML syntax rules do apply.
• <path>/dev/video0</path> specifies the Video Device to use
• <input>0</input> specifies the particular capture port on the card
• <norm>ntfs0</norm> specifies the media format the signal is transmitted as

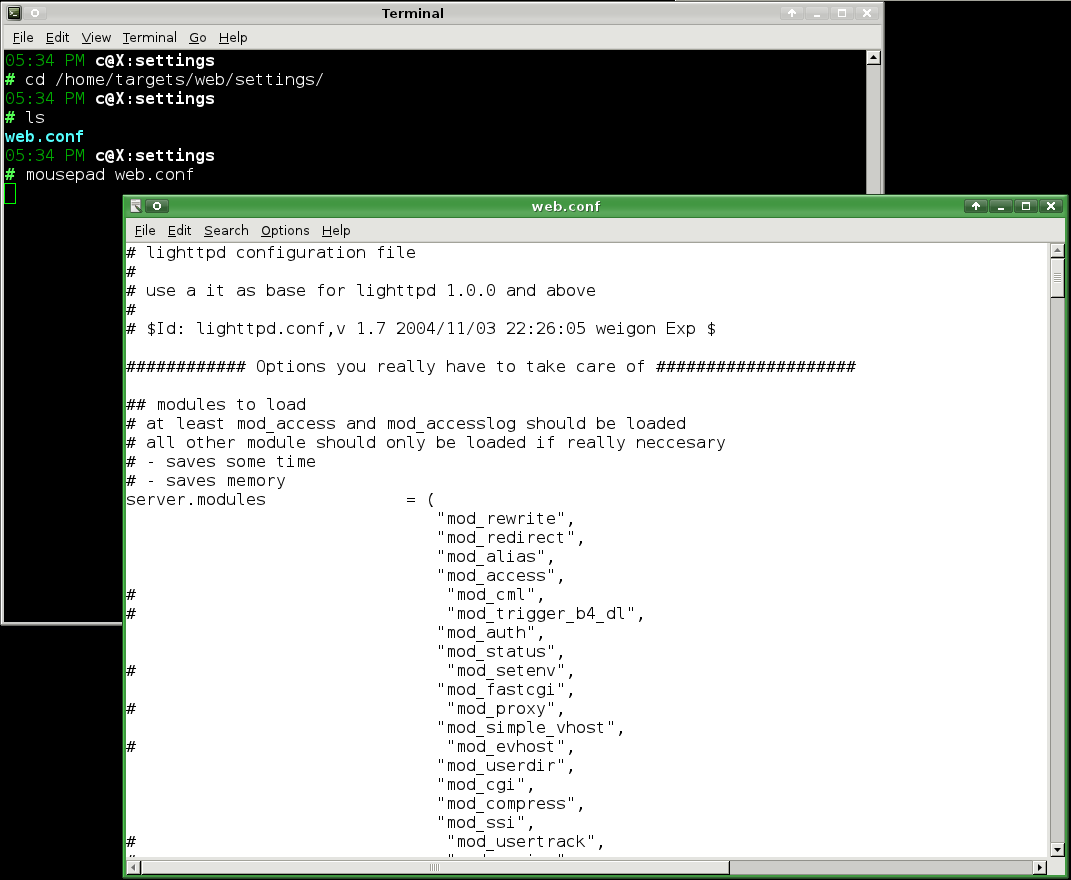

Configuring Lighttpd Server

Configuration Path: /home/targets/web/settings/

The Files:

1. lighttpd.conf

File 1:
  This is the configration file for the lighttpd server.

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• server.document-root specifies the system path where the website root exists, default is /home/websites/
• server.port specifies the port the server listens on, default is 80

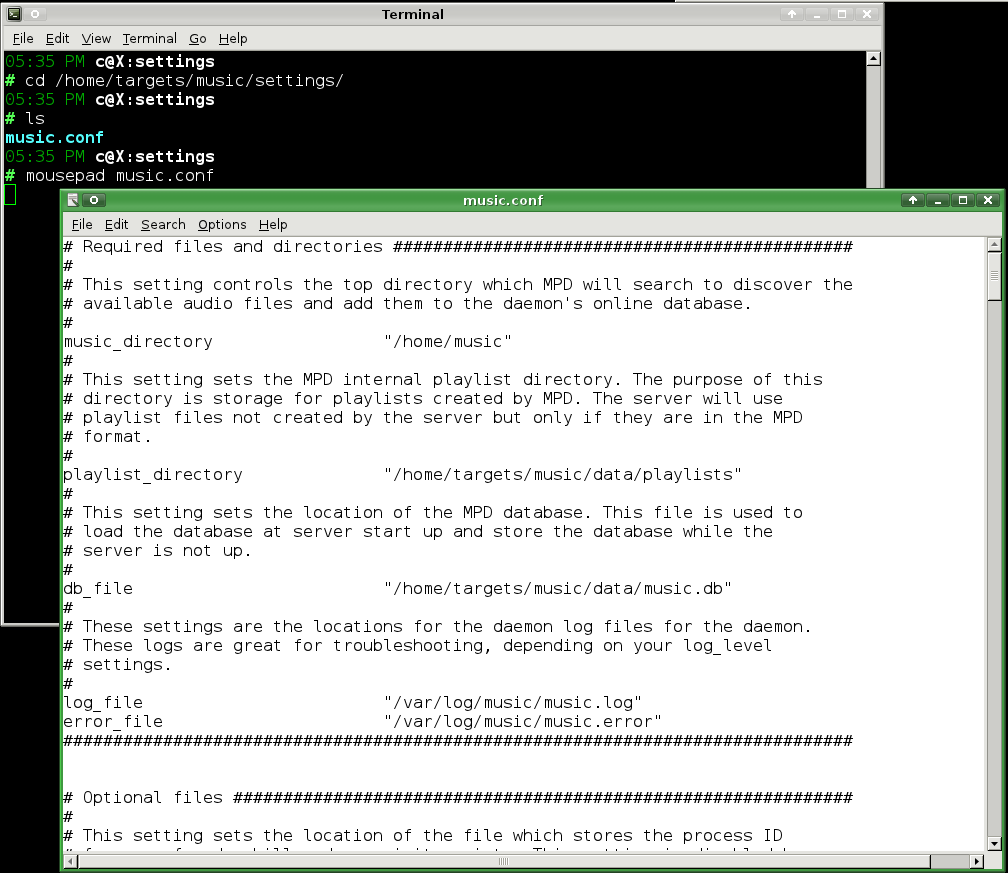

Configuring MPD Server

Configuration Path: /home/targets/music/settings/

The Files:

1. mpd.conf

File 1:
  This is the configration file for the mpd server.

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• music_directory specifies where the available music exists, default is /home/music/
• port specifies where the port the server listens on, default is 6600

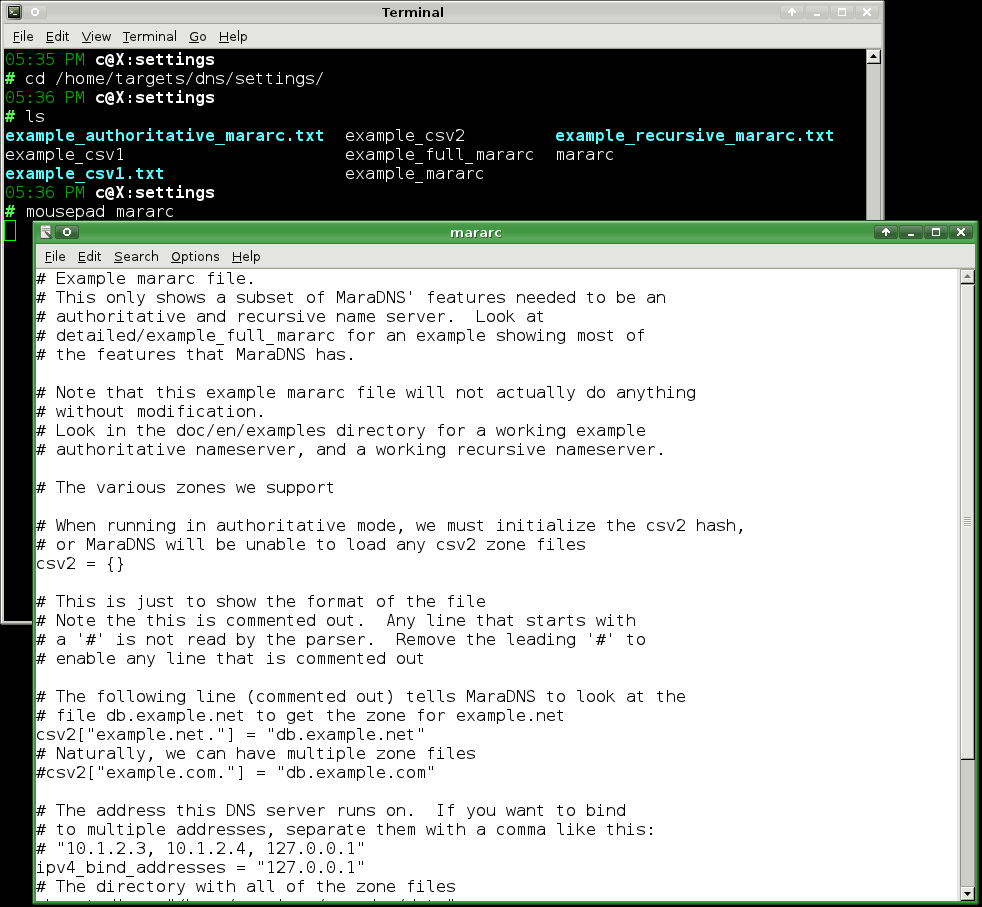

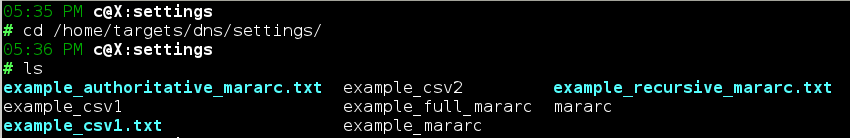

Configuring MaraDNS Server

Configuration Path: /home/targets/dns/settings/

The Files:

1. mararc
2. example_authoritative_mararc.txt
3. example_example_csv1
4. example_example_csv1.txt
5. example_example_csv2
6. example_full_mararc
7. example_mararc
8. example_recursive_mararc.txt

File 1:
  This is the configuration file for the mararc server

Files 2-8:
  These are different examples of how to configure mararc
  * Files 3 & 4 appear to be identical and one will be removed in the future

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.

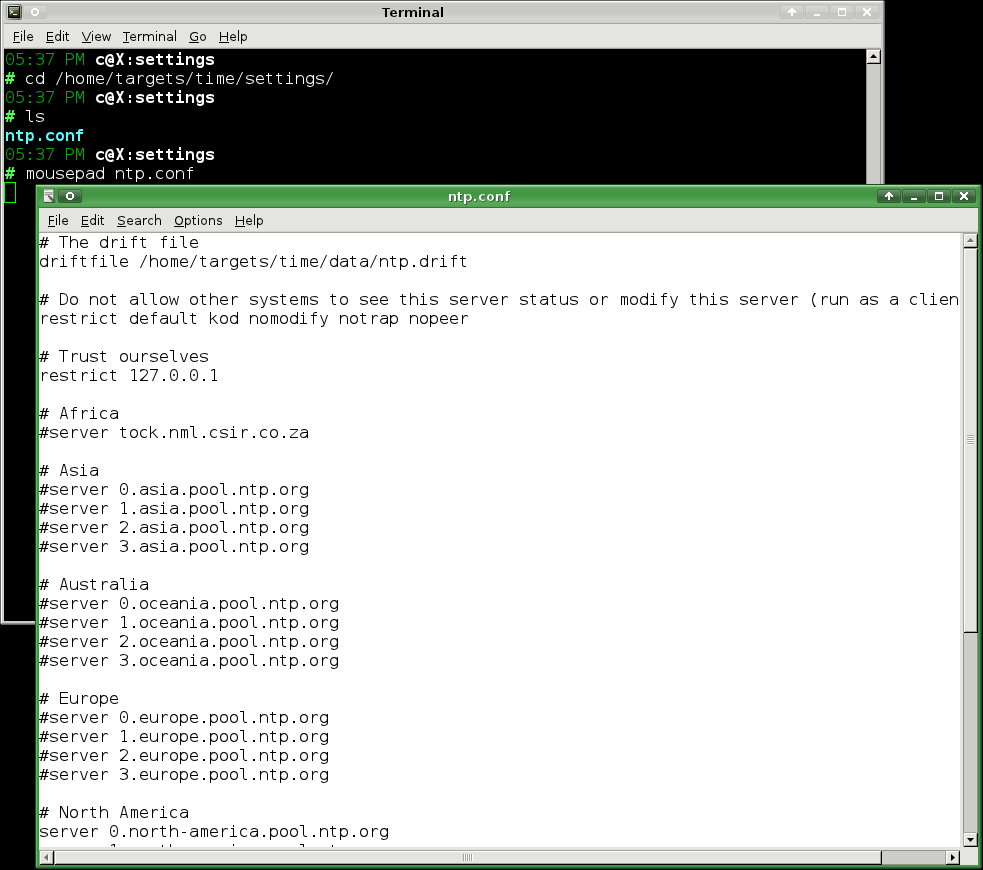

Configuring NTP Server

Configuration Path: /home/targets/time/settings/

The Files:

1. ntp.conf

File 1:
  This is the configuration file for the ntp server

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• This is easy to configure, just uncomment the servers you want to pull from and comment out all others

Configuring Postgres Server

Configuration Path: /home/targets/database/settings/

The Files:

1. postgresql.conf
2. pg_hba.conf
3. pg_ident.conf

File 1:
  This is the configuration file for the particular postgres database

File 2:
  This file manages what computers or ip blocks can access the postgres server at all
  Make sure to read the documentation present in this file

File 3:
  This file maps user names to postgresql database user names
  This is useful if the current username connects to the database under a different name
  Make sure to read the documentation present in this file

Initial Setup:
  Create the database:
    su - t_database -c '/bin/initdb -D /home/targets/database/data -E UTF8 --locale=en_US.UTF-8'

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• The configuration files are specific to each database, such that if you were to change the Create the database path from /home/targets/database/data to /home/targets/database/somewhere then you would need to edit the configuration files at /home/targets/database/somewhere/.

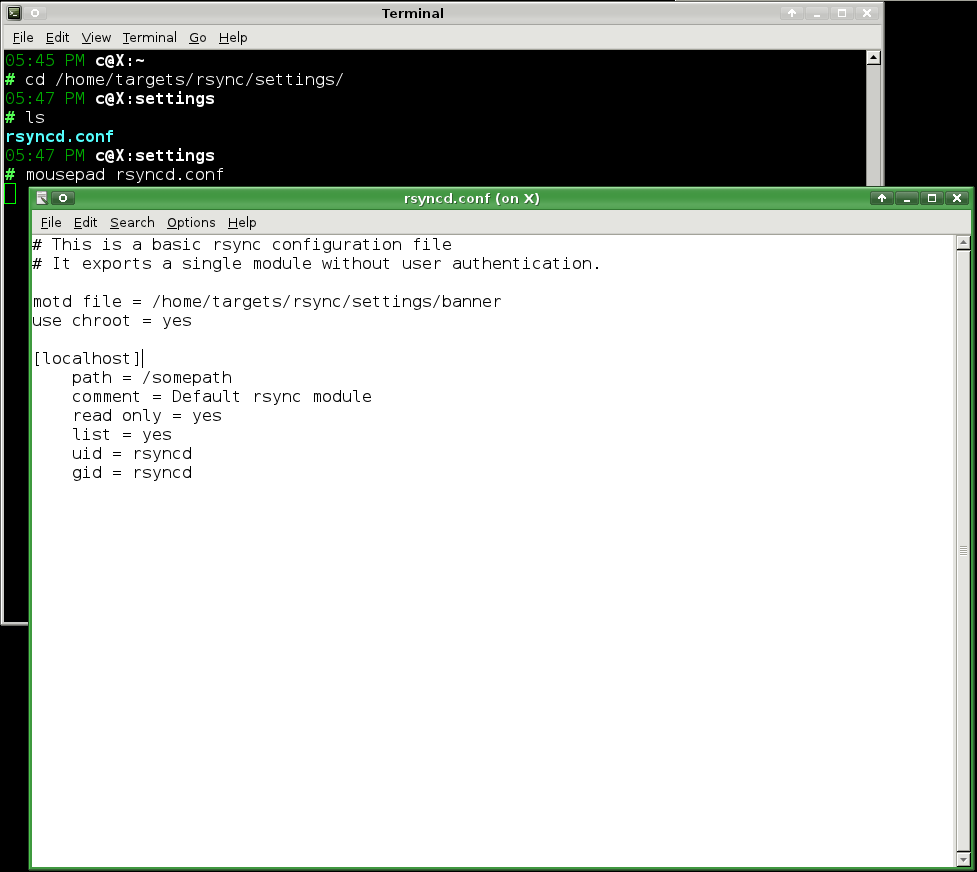

Configuring RSync Server

Configuration Path: /home/targets/rsync/settings/

The Files:

1. rsyncd.conf

File 1:
  This is the configuration file for the rsync server

Notes:

• The configuration file Initial Setup:
    Create the database:
      su - postgresd -c '/bin/initdb -D /home/targets/postgresd/database'

  format is a bash-like syntax; bash comment rules apply.

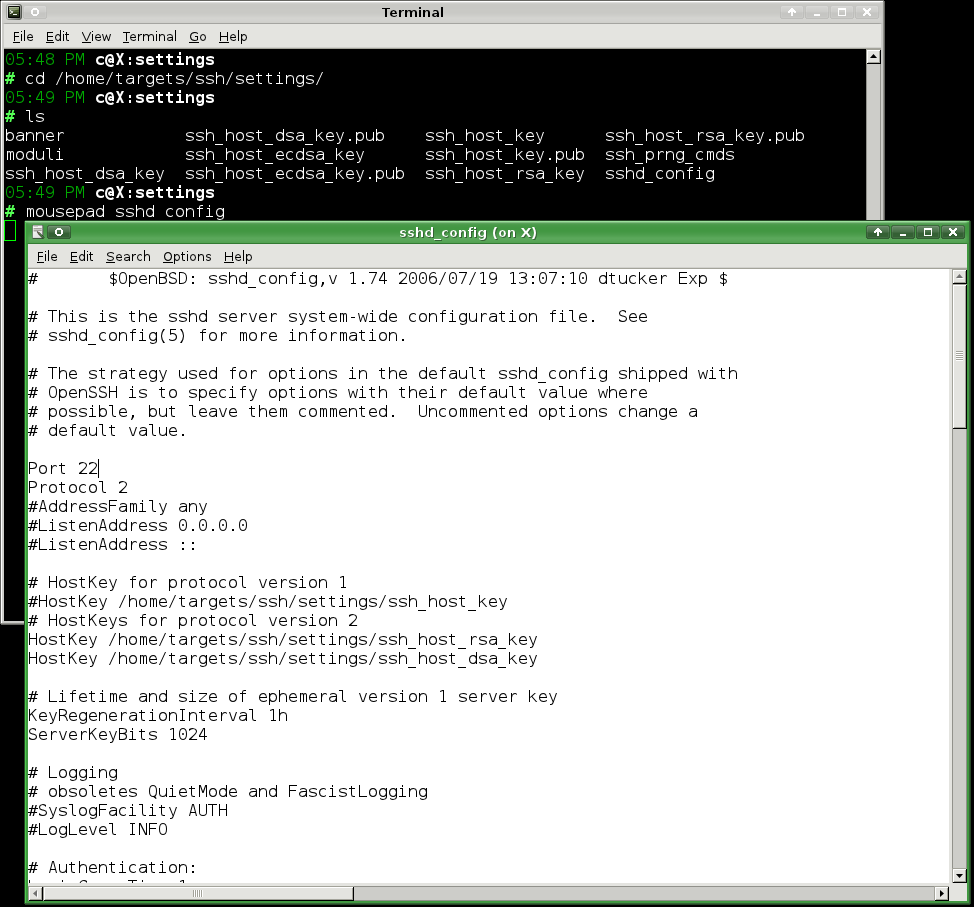

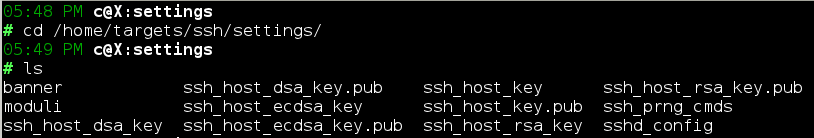

Configuring SSH Server

Configuration Path: /home/targets/ssh/settings/

The Files:

1. sshd_config
2. banner
3. moduli
4. ssh_prng_cmds
5. ssh_host_dsa_key
6. ssh_host_dsa_key.pub
7. ssh_host_ecdsa_key
8. ssh_host_ecdsa_key.pub
9. ssh_host_key
10. ssh_host_key.pub
11. ssh_host_rsa_key
12. ssh_host_rsa_key.pub

File 1:
  This is the ssh server configuration file

File 2:
  This will display information to a client making a connection attempt to the server
  This can expose information to an attacker that might be useful and therefore is disabled by default

Files 3 & 4:
  These files are not required and may not even be used anymore; you can safely ignore these.

Files 5 to 12:
  These files are auto-generated by the initng start script.
  You can create these manually by calling the setup_ssh_host_keys script.

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• The setup_ssh_host_keys command will create more files in the /home/targets/ssh/settings/ directory. These files begin with ssh_host_.
• Port specifies where the port the server listens on, default is 22
• Banner specify a file to enable, comment out to disable

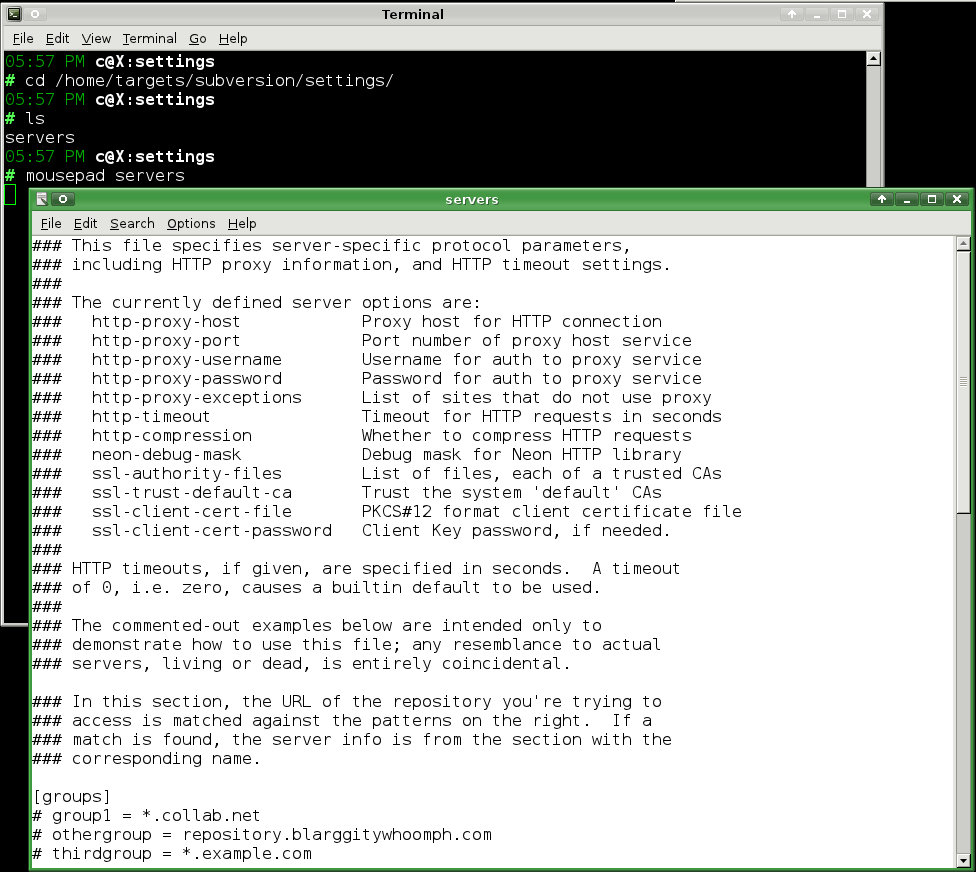

Configuring Subversion Server

Configuration Path: /home/targets/subversion/settings/

The Files:

1. servers

File 1:
  This is the subversion server configuration file

Notes:

• The configuration file format is a bash-like syntax; bash comment rules apply.
• NOTE: The subversion database should already be created at /home/targets/subversion/data/
• If the server already exists, then you will need to remove the existing one as shown in the example picture (rm -Rf /home/targets/subversion/data)
• WARNING: The subversion server uses plaintext passwords in the configuration file
